S57減速機電機功率：S57-Y0.18KW,S57-Y0.25KW,S57-Y0.37KW,S57-Y0.55KW,S57-Y0.75KW,S57-Y1.1KW,S57-Y1.5KW,S57-Y2.2KW,S57-Y3KW（可配http://www.bosiii.com/product/s57jiansuji-cn.html變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
S57減速機減速比：201比,184.8比,158.12比,137.05比,128.10比,110.73比,94.08比,84.00比,71.75比,69.39比,67.20比,63.80比,56.61比,54.59比,47.32比,44.22比,38.23比,32.48比,29.00比,24.77比,23.20比,20.33比,19.54比,17.62比,16.47比,14.24比,12.10比,10.80比,9.23比,8.64比,7.28比,6.83比（兩個http://www.bosiii.com/product/list-wolunwoganjiansuji-cn.html減速機組合，可獲得更大的減速比） 。
S57減速機輸出轉數：7轉,7.6轉,8.9轉,10轉,11轉,13轉,15轉,17轉,20轉,21轉,22轉,25轉,26轉,30轉,37轉,43轉,48轉,57轉,60轉,69轉,72轉,79轉,85轉,98轉,116轉,130轉,152轉,162轉,192轉,205轉,219轉,260轉,294轉,350轉（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）。
S57減速機輸出扭矩：88N.m,93N.m,95N.m,98N.m,100N.m,146N.m,166N.m,168N.m,169N.m,215N.m,245N.m,265N.m,285N.m,290N.m,295N.m（以上http://www.bosiii.com/product/list-sxiliejiansuji-cn.html扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，型號加大,或者兩個組合使用）。

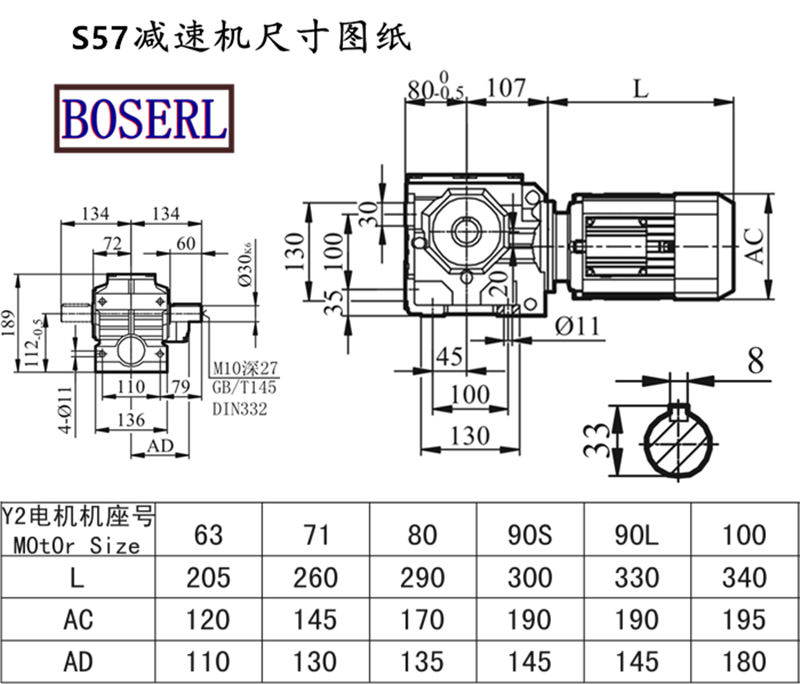

S57減速機安裝尺寸：輸出軸+鍵Φ33（可定做），高189*寬208（帶輸出軸）*長187
S57減速機電機型號：S57-Y0.18KW,S57-Y0.25KW,S57-Y0.37KW,S57-Y0.55KW,S57-Y0.75KW,S57-Y1.1KW,S57-Y1.5KW,S57-Y2.2KW,S57-Y3KW,S57DV63S4,S57DV71S4,S57DV80S4,S57DV90L4,S57DV100S4,S57DM63L4,S57DM63S4,S57DM71S4,S57DM80S4,S57DM90L4,S57DM100S4,S57DV63L4,S57DRN63S4,S57DRN71S4,S57DRN80S4,S57DRN90L4,S57DRN100S4,S57DV63L4,S57DT63S4,S57DT71S4,S57DT80S4,S57DT90L4,S57DT100S4,S57DT63L4,S57DRE63S4,S57DRE71S4,S57DRE80S4,S57DRE90L4,S57DRE100S4,S57DRE63L4,S57DVE63S4,S57DVE71S4,S57DVE80S4,S57DVE90L4,S57DVE100S4,S57DVE63L4,S57DRS63S4,S57DRS71S4,S57DRS80S4,S57DRS90L4,S57DRS100S4,S57DRS63L4,S57DR63S4,S57DR71S4,S57DR80S4,S57DR90L4,S57DR100S4,S57DR63L4,S57DV63M4,S57DV71M4,S57DV80M4,S57DV90M4,S57DV100M4,S57DRN63M4,S57DRN71M4,S57DRN80M4,S57DRN90M4,S57DRN100M4,S57DT63M4,S57DT71M4,S57DT80M4,S57DT90M4,S57DT100M4,S57DVE63M4,S57DVE71M4,S57DVE80M4,S57DVE90M4,S57DVE100M4,S57DRE63M4,S57DRE71M4,S57DRE80M4,S57DRE90M4,S57DRE100M4,S57DRS63M4,S57DRS71M4,S57DRS80M4,S57DRS90M4,S57DRS100M4,S57DM63M4,S57DM71M4,S57DM80M4,S57DM90M4,S57DM100M4,S57Y63M4,S57Y71M4,S57Y80M4,S57Y90M4,S57Y100M4。
